Dot Pin Marking
Machine.

Pneumatic impact marking that puts permanent serial numbers, part numbers, logos and Data Matrix codes on metal up to 65 HRC — 0.1 to 0.8 mm deep, at 0.02 mm accuracy. Built and supported in India by ANC.

Request a Quote WhatsApp Call Now
0.02mm
Marking accuracy
65 HRC
Max hardness
0.8mm
Max depth
10 Lac
Pin life (characters)

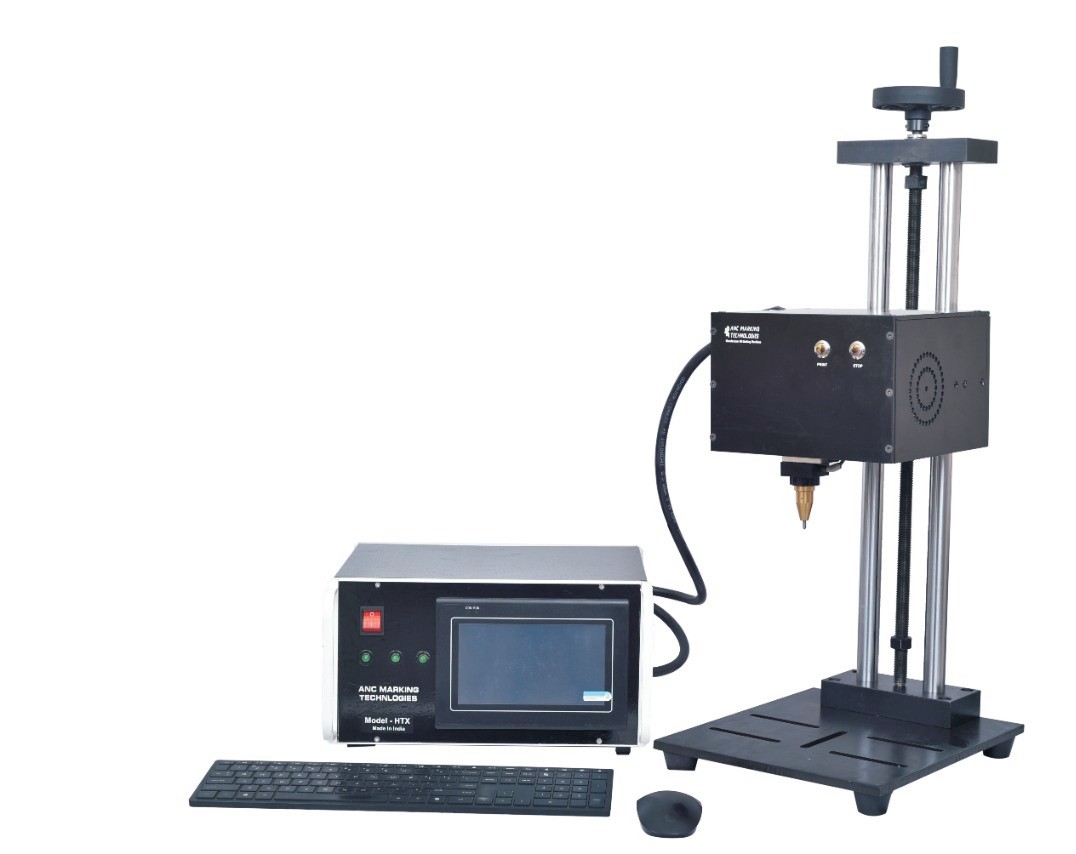

ANC DPM-HTX dot pin marking machine with PC-based controller and marking head on column stand
Model DPM – HTX
IEC Certified/ Export Ready/ 24 × 7 Support/ Machine Customization/ Pan India Installation
What Is A Dot Pin Marking Machine

Permanent traceability, struck straight into the metal.

A dot pin marking machine — also called a dot peen or micro-percussion marker — uses a hardened carbide pin driven by compressed air to strike the component at high frequency. Each strike leaves a micro-indentation; thousands of them, placed by precise X and Y axis movement, form readable characters, logos and 2D Data Matrix codes.

Because the pin displaces metal rather than cutting it away, no material is removed and no stress-raising notch is created. The mark survives shot blasting, painting, galvanising, oil, heat and years of handling — which is exactly why automotive, forging and aerospace suppliers rely on it for part traceability.

ANC has been manufacturing these machines in Chakan, Pune since 2009, with PC-based, touchscreen and fully portable variants, plus in-house spares and 24 × 7 service across India.

How It Works

From design file to permanent mark in four steps.

01

Design is loaded

Text, serial numbers, logos or 2D Data Matrix codes are entered on the controller, or imported over USB as .PLT, .DXF or .SLG files.

02

Head positions on X–Y

Stepper-driven axes position the marking head to 0.02 mm accuracy, following straight or ARC marking paths.

03

Carbide pin strikes

Air at 4–6 Bar drives the hardened indentor pin, striking the surface at high frequency to form micro-indentations.

04

Mark is formed

Metal is displaced, not removed — the mark survives paint, galvanising and heavy handling without weakening the part.

Main components of the machine

Knowing the anatomy of the machine makes daily maintenance and troubleshooting straightforward — and every one of these parts is stocked by ANC.

View spares & accessories →

Controller unit

PC-based or 7" touch LCD brain that converts your design into precise axis movement and pin firing.

Indentor (striking) pin

Carbide stylus in 2/3/4/5/6 mm sizes that physically forms the dots. Approx. 10 lac characters of life.

Pneumatic drive system

Solenoid valve, e-magnet and air filter regulator delivering a consistent 4–6 Bar impact stroke.

Column, base & fixture

Rigid frame with hand-wheel Z adjustment, plus name plate or rotary fixtures to hold the component steady.

Models

Three variants. One marking standard.

DPM-HTX dot pin marking machine with PC-based controller
PC-based controller

DPM – HTX

Working area
100 × 100 mm
Controller
PC-based built-in controller
  • Bench-top column design with hand-wheel height adjustment
  • Keyboard + mouse operation with on-board marking software
  • Ideal for name plates, flanges, gears and machined parts
Request Quote

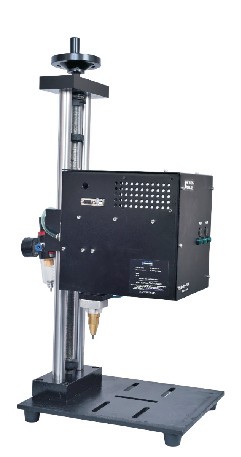

DPM-HTX dot pin marking machine with 7 inch touch LCD controller
Standalone touchscreen

DPM – HTX with 7" Touch LCD

Working area
100 × 100 mm
Controller
7" touch LCD controller
  • No PC required — operator works directly on the touchscreen
  • Job memory for repeat part numbers and serial sequences
  • Compact footprint for in-line placement next to the machine
Request Quote

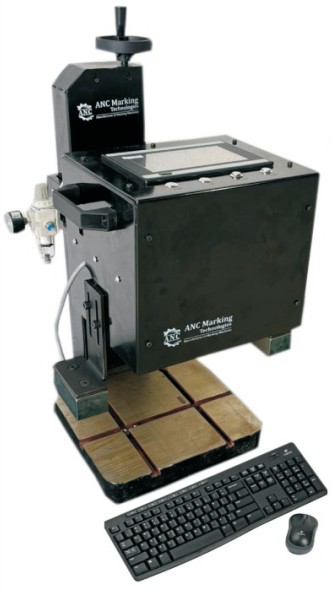

Portable standalone dot pin marking machine with built-in 7 inch touch LCD
Built-in 7" Touch LCD

DPM – Portable Standalone

Working area
150 × 100 mm / 110 × 30 mm
Controller
7" touch LCD controller
  • Marking head can be carried to large, fixed or heavy components
  • Handles chassis, tanks, structures and immovable fabrications
  • Same pneumatic impact quality in a shop-floor portable format
Request Quote

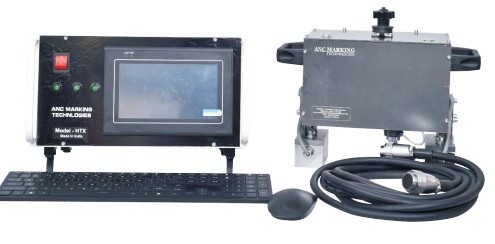

Portable dot pin marking machine kit with 7 inch touch LCD controller, marking head and cables

Take the machine to the component.

The portable standalone kit ships with the marking head, 7" touch LCD controller, 19-pin data cable, air filter regulator and power cable — so heavy fabrications, tanks, chassis and structures can be marked exactly where they stand, with a working area of 150 × 100 mm (110 × 30 mm head variant available).

Technical Specifications

ANC Dot Pin Marking Machine — full spec sheet.

Technology
Pneumatic impact marking
Marking depth
0.1 – 0.8 mm
Marking type
Line / Dotted
Marking style
Straight / ARC
Air pressure
4 – 6 Bar
Hardness support
Up to 65 HRC
Indentor pin life
Approx. 10 Lac characters
File formats
.PLT / .DXF / .SLG
Connectivity
USB
Marking accuracy
0.02 mm
Marking speed
2 – 3 characters / sec
Power input
230V, 50Hz, 5A

Dot pin vs. laser marking

Feature Dot Pin Marking Laser Marking
Marking technology Impact technology - generates noise while marking Non-Impact technology - silent marking
Marking depth Deep structural indentation (0.1 – 0.8 mm) Shallow surface alteration (~0.2 mm)
Consumables Very low — occasional indentor pin change No physical consumables
Best suited for Heavy metals, thick automotive & forged parts Fine detail, logos, high-speed batch marking
Survives painting / galvanising Yes — depth keeps the mark readable Can be covered by thick coatings

How to operate it

  1. Clamp the component firmly on the fixture to stop vibration.
  2. Enter the text, serial number or barcode in the controller software.
  3. Set the pin-to-surface height using the hand wheel.
  4. Run a dry test cycle to confirm position and layout.
  5. Start the marking cycle and let the pin complete the path.

ANC installs the machine at your plant and trains your operators on these steps — anywhere in India.

Marking Samples

Line, dotted and ARC marking on real components.

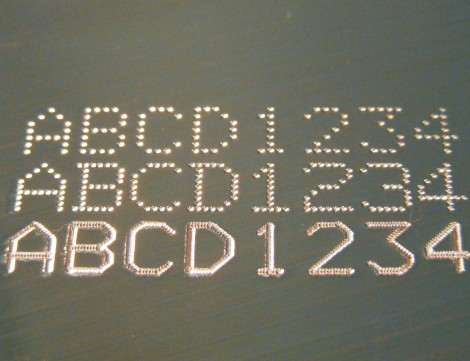

Dot pin marked characters in line and dotted styles on a steel plate
Manufacturer, serial and part number with Data Matrix code dot pin marked on metal
Dot pin marked identification text on a machined bearing ring
Serial number and CE mark dot pin engraved on a cylindrical component
Industries Served

Where these machines run every day.

Automobile

Engine parts, chassis, transmission housings and full VIN traceability.

Forging & Foundry

Heat numbers and batch codes on rough, scaled and hot-worked surfaces.

Engineering

Gears, shafts, valves and machined components with serial numbers.

Aerospace & Defence

High-integrity part identification on critical assemblies.

Pumps & Valves

Name plates, rating plates and body marking with logos.

Heavy Fabrication

Portable marking directly on tanks, structures and immovable parts.

Spares & Accessories

Every DPM consumable, in stock.

Carbide indentor pins for dot pin marking machines

Indentor pins

2 / 3 / 4 / 5 / 6 mm carbide pins

Replacement DPM controller card

Control card

Replacement DPM controller card

7 inch touch LCD screen for dot pin marking machine

7" LCD screen

Touch controller display unit

Timing belts, pulleys and drive parts for dot pin marking machines

Belts & drive parts

Timing belts, pulleys, rail-blocks, motors

Name plate and rotary fixtures for dot pin marking machines

Fixtures

Name plate & rotary fixtures, stepper drives

19-pin data cables and pneumatic accessories for dot pin marking machines

Cables & pneumatics

19-pin data cables, air filter regulator, USB

FAQ

Questions we get before every purchase.

Still unsure which variant fits your component? Send us the part drawing — we'll recommend the working area, fixture and pin size.

What is a dot pin marking machine?

A dot pin marking machine is a pneumatic impact marking system. A hardened carbide pin strikes the metal surface at high frequency while X and Y axes move the head, forming a permanent mark out of closely spaced micro-indentations — text, serial numbers, logos or 2D Data Matrix codes.

How deep does it mark, and on how hard a material?

ANC dot pin machines mark 0.1 to 0.8 mm deep and support material hardness up to 65 HRC, so mild steel, alloy steel, hardened components, cast iron, aluminium and brass are all covered.

Does dot pin marking weaken the component?

No. The pin displaces metal instead of cutting it away, so no material is removed and no stress-raising notch is created in the base material.

Dot pin or laser — which should I buy?

Choose dot pin for deep, permanent marks on thick or heavy metal parts that go through painting, galvanising or rough handling, and for a much lower capital cost. Choose laser for very fine detail, logos and very high-speed batch marking on finished surfaces.

What does the machine need to run?

A 230V, 50Hz, 5A single-phase supply and a compressed air line at 4 to 6 Bar. Designs can be loaded over USB in .PLT, .DXF or .SLG format.

Do you customise working area and fixtures?

Yes. Working area, fixture design, rotary attachments and automation/integration with your production line are customised. ANC also delivers, installs and trains operators anywhere in India.

Get In Touch

Request a quote for your dot pin machine.

Tell us the component, material hardness and marking size. We'll recommend the right model, customise the fixture if needed, and give you the best price — with delivery, installation and operator training anywhere in India.

15+ YearsManufacturing since 2009
1L+Machines installed
